Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Double Line Stud & Track Thép hồ sơ máy tạo thành máy tạo thành máy tùy chỉnh | loại đột dập: | Thủy lực |
|---|---|---|---|
| Hệ thống điều khiển: | Plc | Loại cắt: | cưa bay |
| Bảo hành: | 2 năm | Trọn đời: | 10 năm |
| Làm nổi bật: | double line stud track machine,steel profile roll forming machine,customized cold roll forming machine |
||

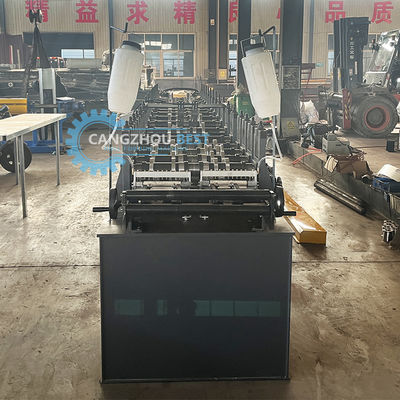

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine
Working Flow:

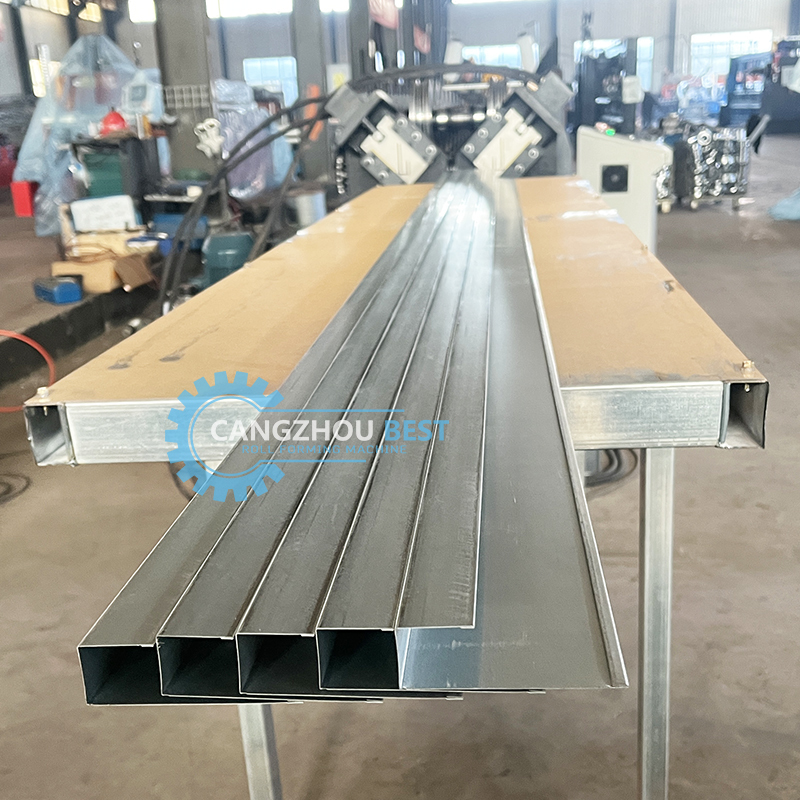

Decoiler-----feeding-----roll forming------cutting-----finished product
Machine Component:
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | cutting device | set | 1 |
| 6 | Output table | set | 1 |
Machine Specifications:
1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs
(5)Type:manual

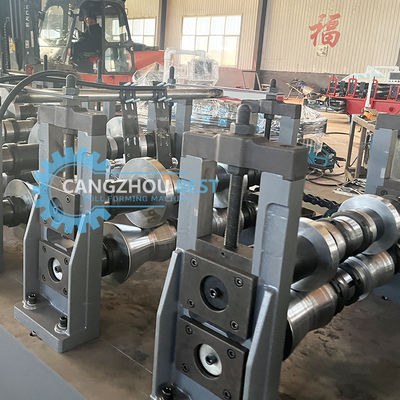

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.5-1.0mm PPGI and GI
(2) NO. of roller Stations:14+14 groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 60mm
(6) Frame panel : casting type
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5kw
(9)Driven type: chain
(10)Speed: 8-12m/min

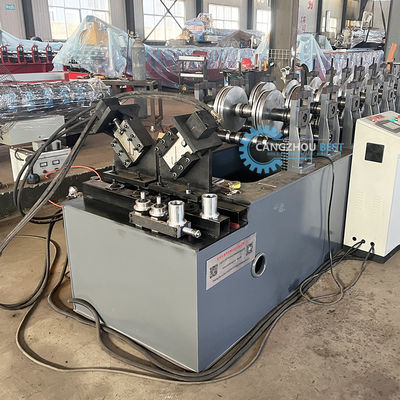

3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Mould Cutting
(4)Motor for Hydraulic Stand: 3kw
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
Warranty
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
