Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy đo ánh sáng Thép Keel Gypsum Metal Stud và máy tạo thành theo dõi | Hệ thống điều khiển: | Plc |
|---|---|---|---|
| Loại cắt: | cưa bay | Bảo hành: | 2 năm |
| Trọn đời: | 10 năm | Vật liệu con lăn: | Cr12 Mov |
| vật liệu trục: | 45#Thép | ||
| Làm nổi bật: | high-speed drywall metal stud machine,steel track roll forming machine,drywall profile roll forming machine |
||
Light steel keel, it is a kind of new building materials, with the development of modernization construction.light steel keel is widely used in hotel ,terminal building,car depot,station,Amusement Park,mall,factory,office building,old building renovation, indoor decoration set,ceiling ,etc.
Light steel keel is with the features of lightweight, highstrength, waterproof,shockproof, dustproof,soundproof,sound absorption,constant temperature;also with advantages of short limit time and easy installation.
Working flow
Decoiler------feeding------roll forming-------cut to length-----output table
Profile Drawing

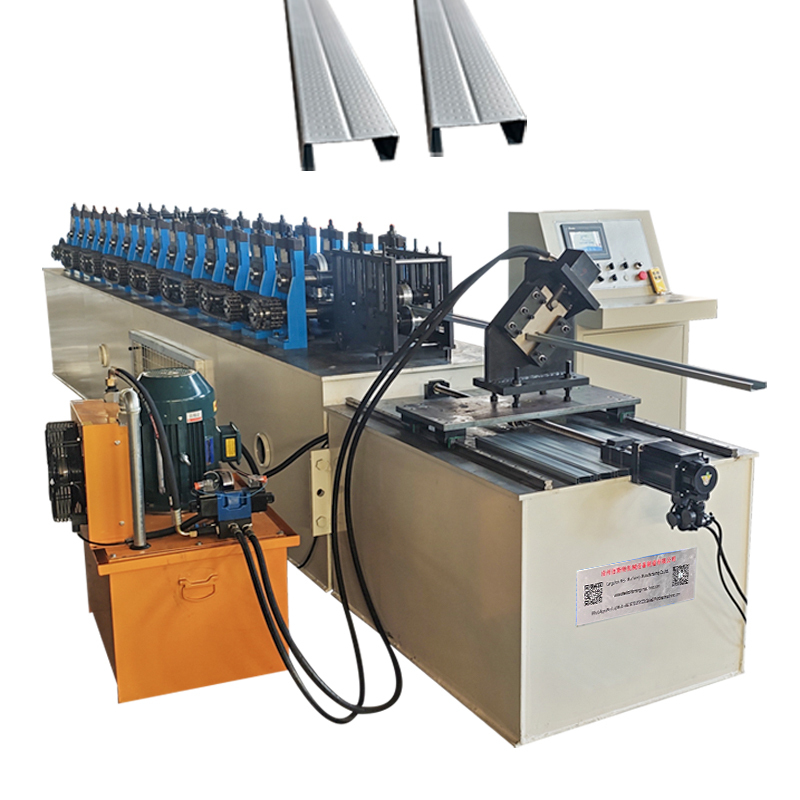

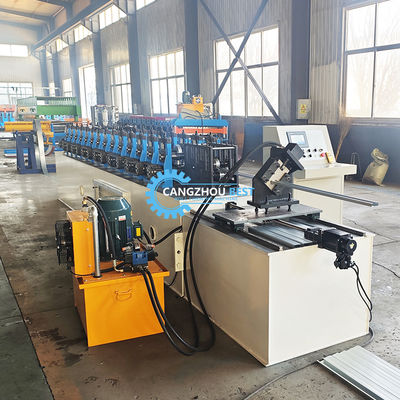

Machine Components
| Name | Quantity(set) |

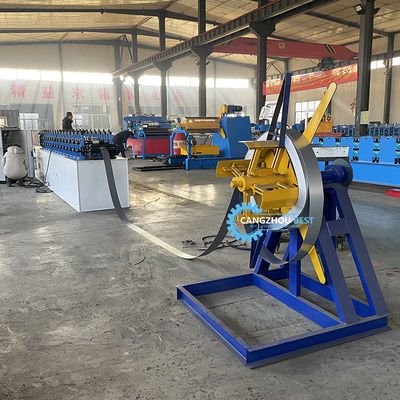

| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1.Machine size | 10m x 1.2m (L XW) |
| 2.Working size | 20m x 2.5m (LXW) |
| 3.Power supply | 8.5kw |
| 4.Frequency | 50-60HZ |
| 5.Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8.Lift device | 3-5t forklift or crane |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
