Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy thép mạ kẽm Hat Channel Hat Hat Purlin Cold Roll Forming Machine | Hệ thống điều khiển: | Plc |
|---|---|---|---|
| Loại cắt: | Cắt thủy lực không dừng | Bảo hành: | 2 năm |
| Trọn đời: | 10 năm | Vật liệu con lăn: | Thép Cr12 |
| vật liệu trục: | 45# Thép | ||
| Làm nổi bật: | galvanized steel hat channel machine,cold roll forming purlin machine,stud and track roll forming equipment |
||
Working flow
Decoiler------feeding------roll forming-------cut to length-----output table
Profile Drawing

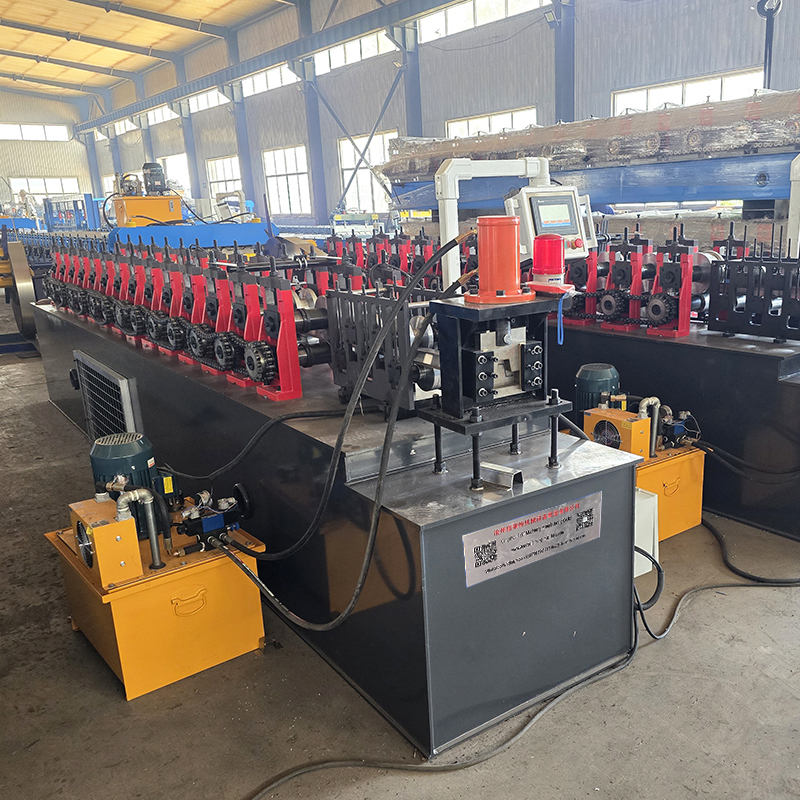

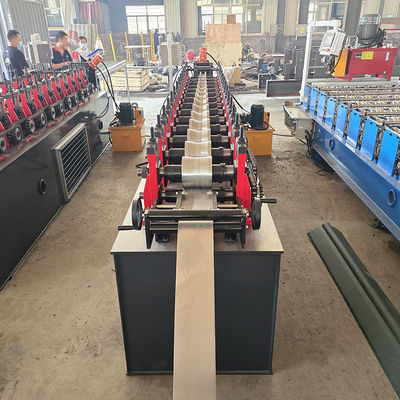

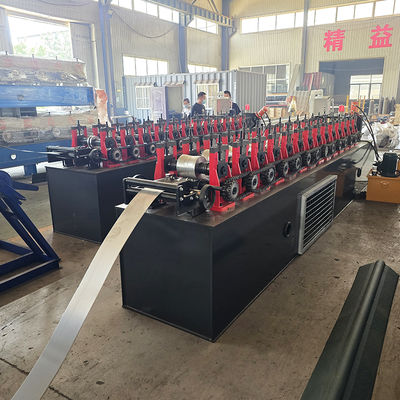

Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm steel plate welding |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-15m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 60mm |
| Feeding Thickness | 1.5mm |
| Roller Station | 15 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | casting frame |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1.Machine size | 10m x 1.2m (L XW) |
| 2.Working size | 20m x 2.5m (LXW) |
| 3.Power supply | 8.5kw |
| 4.Frequency | 50-60HZ |
| 5.Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8.Lift device | 3-5t forklift or crane |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
