Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Thiết kế phổ biến đèn flash thung lũng Ridge Cap Roll Forming Machine | Từ khóa: | Máy tạo hình cuộn nắp |
|---|---|---|---|
| Tốc độ máy: | 8-12m/phút | Năng lượng máy: | 3kw+3kw |
| Trọn đời: | Hơn 10 năm | Bảo hành: | 18 tháng |
| Hệ thống điều khiển: | PLC | ||
| Làm nổi bật: | valley flash ridge cap machine,ridge cap roll forming equipment,popular design roll forming machine |
||
Popular design valley flash Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
Ridge Cap Roll Forming Machine Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Pressing and Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Ridge Cap Roll Forming Machine Machine Parameter
|
Product name |
ridge cap galvanized |
|||
|
NO. |
Items |
Parameters |
Remark |
|
|
1 |
Suitable |
Type |
GI/PPGI/AL |
|
|
|
|
Width |
300-5000mm |
Custom |
|
|
|
Thickness |
0.30-0.80mm |
|
|
2 |
Product |
Length |
Any length |
|
|
|
|
Length Tolerance |
±2mm/6m |
|
|
3 |
Working Speed |
10-15 m/min |
Standard machine |
|
|
4 |
Control System |
Mitsubishi/Siemens PLC& transducer |
Custom |
|
|
5 |
Total Power |
4+3KW |
|
|
|
6 |
Total Weight |
About 3.0T |
Up to final design |
|
| Working conditions | |
| 1.working size | 15m x 2m x 4m |
| 2.Power supply | 6kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
Terms
Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.

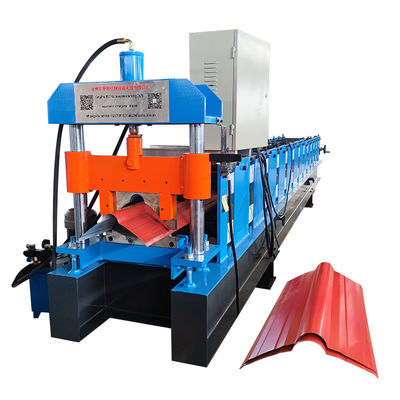

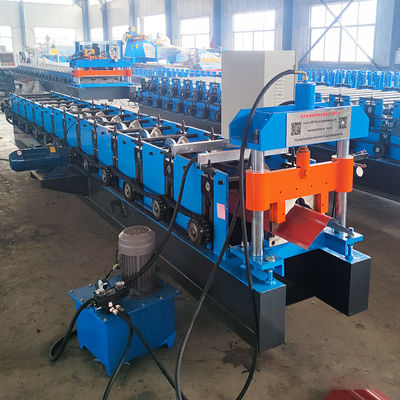

Ridge Cap Roll Forming Machine Machine Photos
