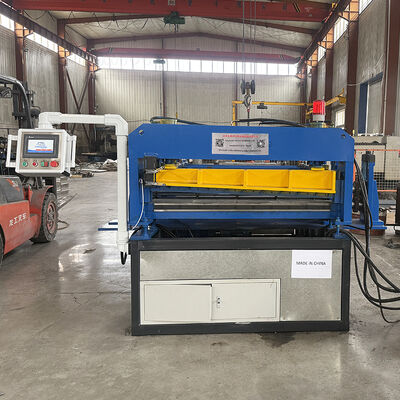

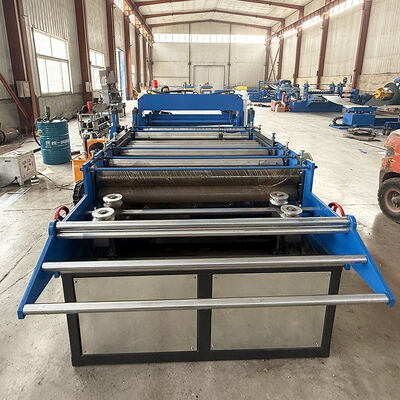

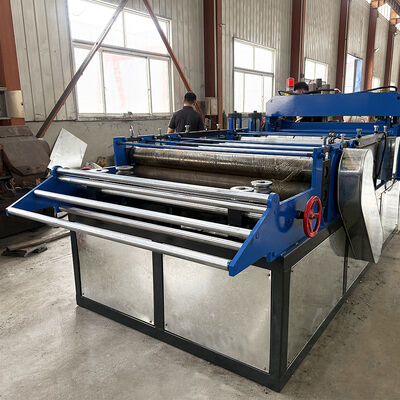

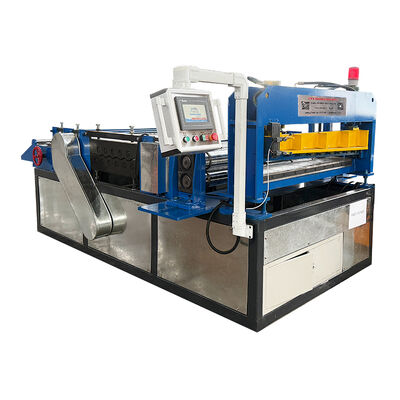

Aluminum PPGI Galvanized Steel Coil Sheet Hydraulic Cutting To Length Roll Forming Machine

Aluminum PPGI Galvanized Steel Coil Sheet Hydraulic Cutting To Length Roll Forming Machine

1. Cut to Length Forming Machine composition

2. Cut to Length Forming Machine Parameter:

a. Raw Material data:

Material thickness: 0.3-1.0mm

Material width: 400-1500mm

Coil I.D.: Φ508mm/Φ610mm

Coil O.D.: ≤Φ1600mm

Coil weight: 5 tons max

b.Finished Product:

Coil I.D.: Φ508mm

Coil O.D.: ≤Φ1600mm

Coil weight: 5 tons max

Narrowest strip width slit into: 20 mm

Width cutting precision: ±0.05mm(strip thickness≤1), ±0.1mm(strip thickness>1.5mm)

Slitting Bur: 0.05 minimum, 5% of the trip thickness

Rocker: plus or minus 1 mm/m or less

Recoiling Looseness(mm) : ≤2 mm

Pcs of Slitting(Max) : 25 PCS

Line working speed: 60m/min max

Total power: Approx.120kw

Voltage: 380V, 3 Phase 50Hz

PLC Electrical control system: Delta

Length Controller: Encoder Frequency Control System

Operation: Touch Screen

3. Working Flow Of the line

Decoil—leveling—slitting—cut to length

4. Payment Term and condition

* Payment Term: 30 T/T in advance, 70% T/T before delivery

* Delivery Time: Within 30 Days after receipt of the down payment

* Warranty: 18 month and life-long maintainance

* Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 100 USD/day, and provide accommodation, food and the round-trip ticket fee.

* Installation Days: about 5 days

* Transporting: 1x40ft container

5. FAQ:

1): How to play order:

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2): How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3): When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4). What can you do if the machine broken?
Our machine's warranty period is 18months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5). Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.

6). You are trade company or factory?
We are Manufacturer.

7). Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

8). Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.

9). Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
